• Paint, solid
• Bumper, front chrome with Gray lower
• Bumper, rear chrome, step-style with pad (Not available with (ZW9) pickup box delete.)
• Air dam, Gray
• Moldings, bodyside (Moldings are color-keyed and not available with (ZW9) pickup box delete. Refer to Color and Trim Chart for compatibility.)
• Wheel flares, front and rear (Refer to Color and Trim chart for compatibility. Front only when (ZW9) pickup box delete is ordered.)
• Grille, color-keyed surround with chrome accent bar
• Headlamps, dual halogen composite with automatic exterior lamp control and flash-to-pass feature
• Daytime Running Lamps, with automatic exterior lamp control
• Lamps, dual cargo area lamps
• Mirrors, outside heated power-adjustable, Black, manual-folding (Upgradeable to (DL3) outside heated, power-adjustable, power-folding mirrors or (DPN) outside vertical camper mirrors.)
• Glass, Solar-Ray deep-tinted (all windows except light-tinted glass on windshield) (With Extended Cab models, includes rear window and rear quarter windows. With (C49) rear-window defogger, includes light-tinted rear.)
• Wipers, front intermittent wet-arm with pulse washers

• Seat trim, Custom Cloth

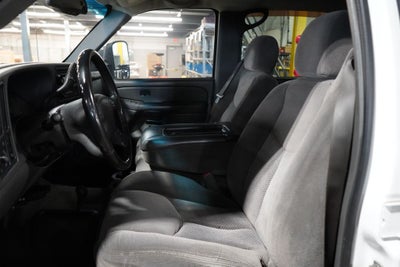

• Seats, front 40/20/40 split-bench, 3-passenger, driver and front passenger manual reclining, center fold-down armrest with storage, adjustable outboard head restraints and storage pockets on Extended Cab models

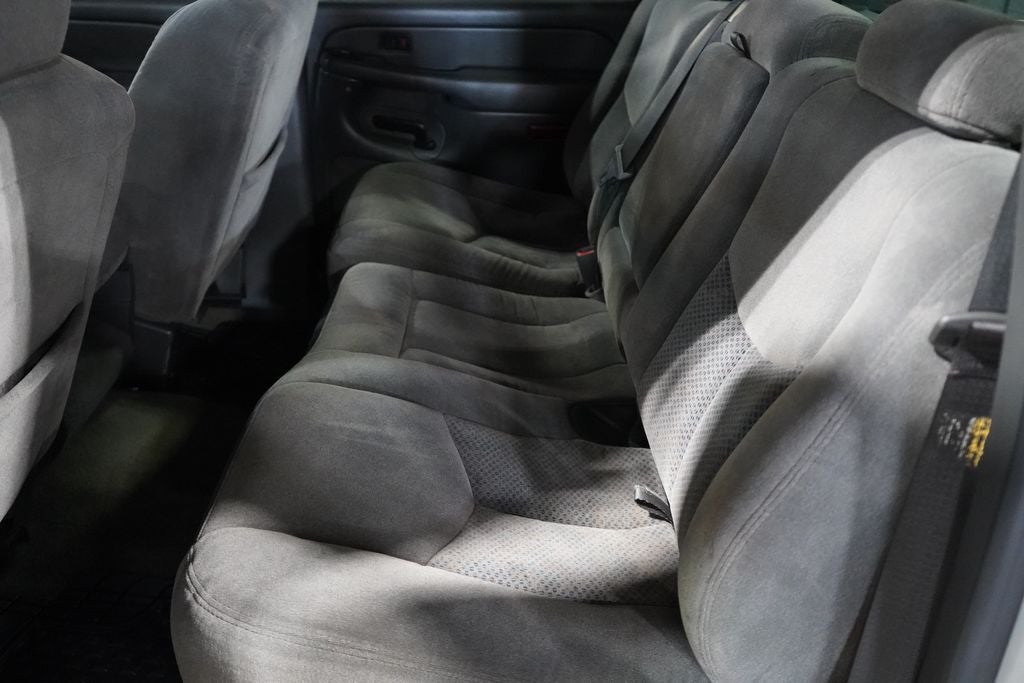

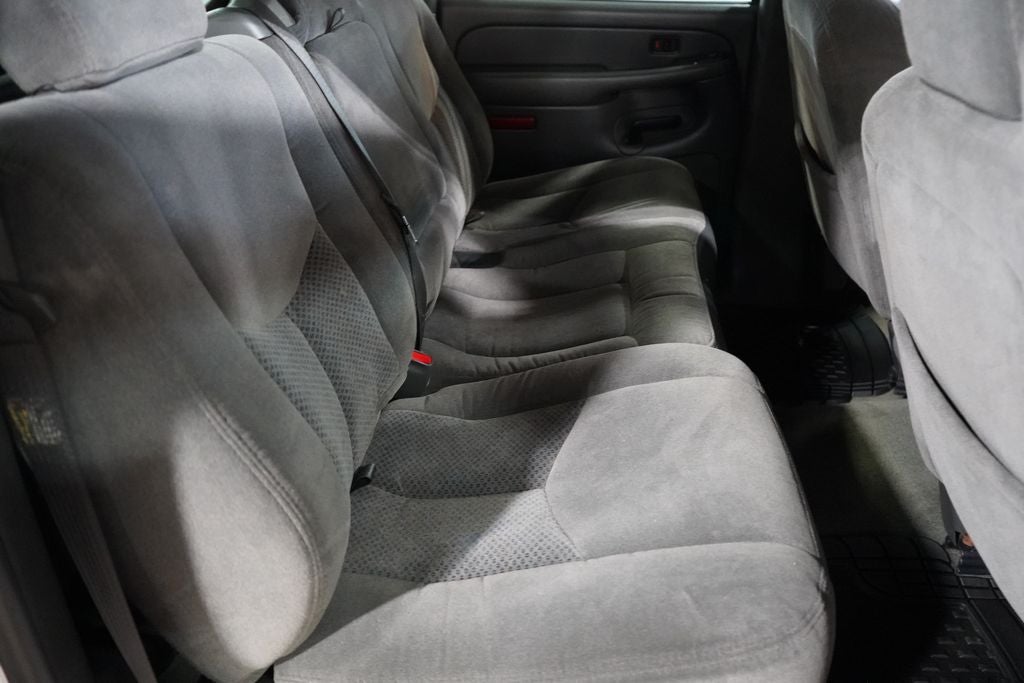

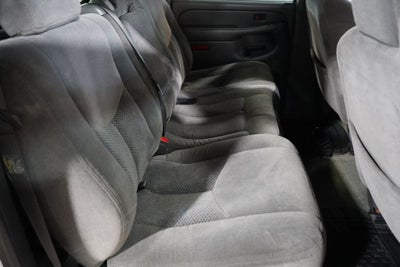

• Seats, rear bench, 3-passenger, folding (includes child seat top tether anchor) (Not available with Regular Cab models.)
• Floor covering, color-keyed carpeting with rubberized vinyl floor mats (May be substituted with (BG9) rubberized vinyl floor covering on Regular and Extended Cab models. Not available with (**V) vinyl interior trim.)
• Steering wheel, leather-wrapped, Black with theft-deterrent locking feature
• Theft-deterrent system, vehicle, PASSlock II
• Driver Information Center that monitors numerous different systems depending on vehicle equipment
• Warning tones, headlamp on, key-in-ignition, driver and passenger buckle-up reminder and turn signal on
• Defogger, rear-window electric (Not available with (A28) sliding rear window.)
• Cruise control, electronic with set and resume speed
• Door locks, power

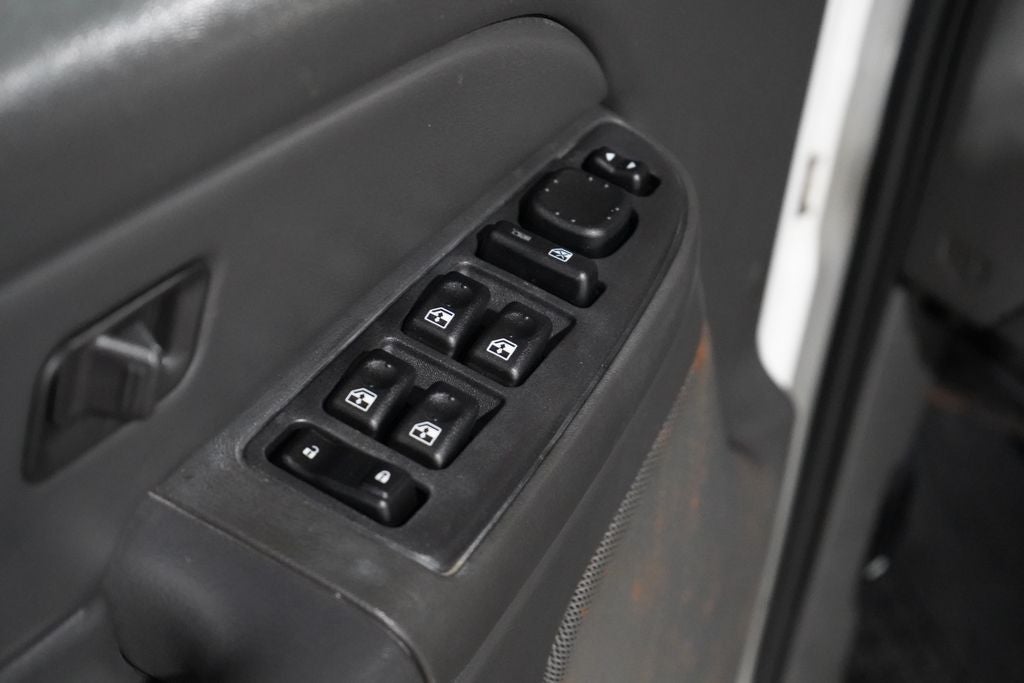

• Windows, power with driver and front passenger Express-Down

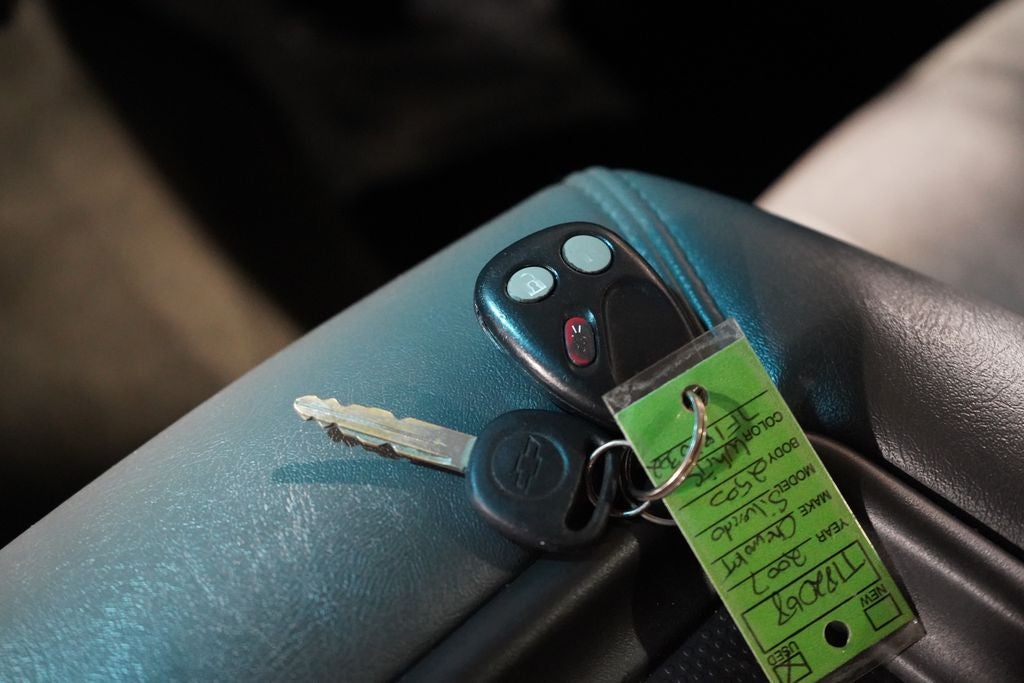

• Remote Keyless Entry, with 2 transmitters, panic button and content theft alarm

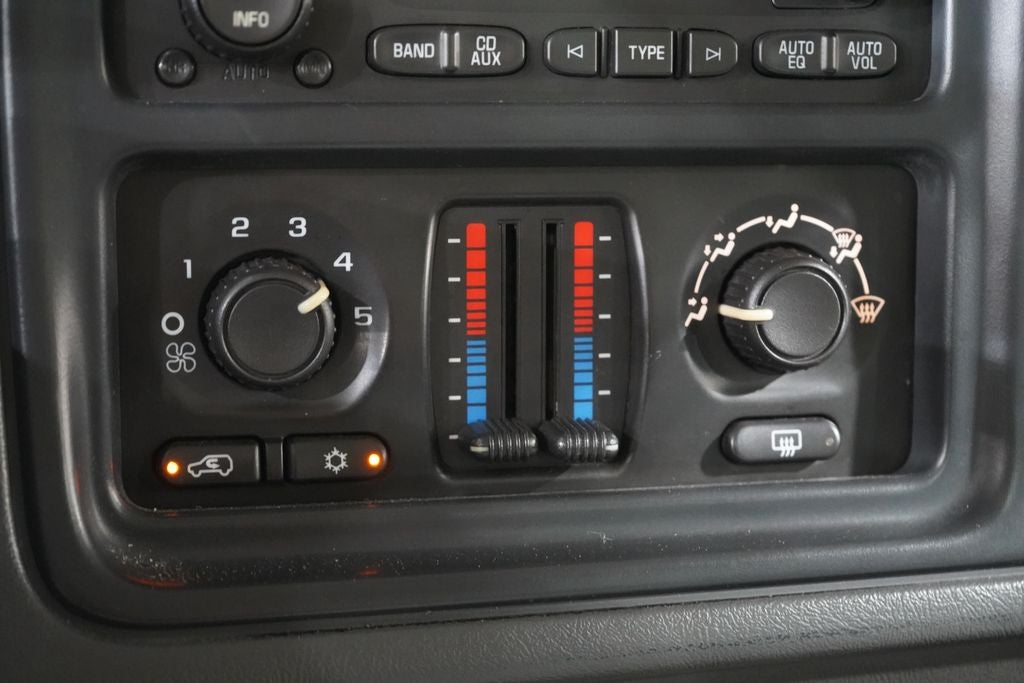

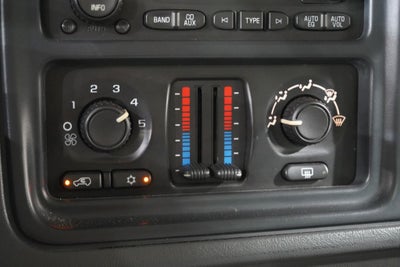

• Air conditioning, dual-zone manual climate control with individual climate settings for driver and right-front passenger

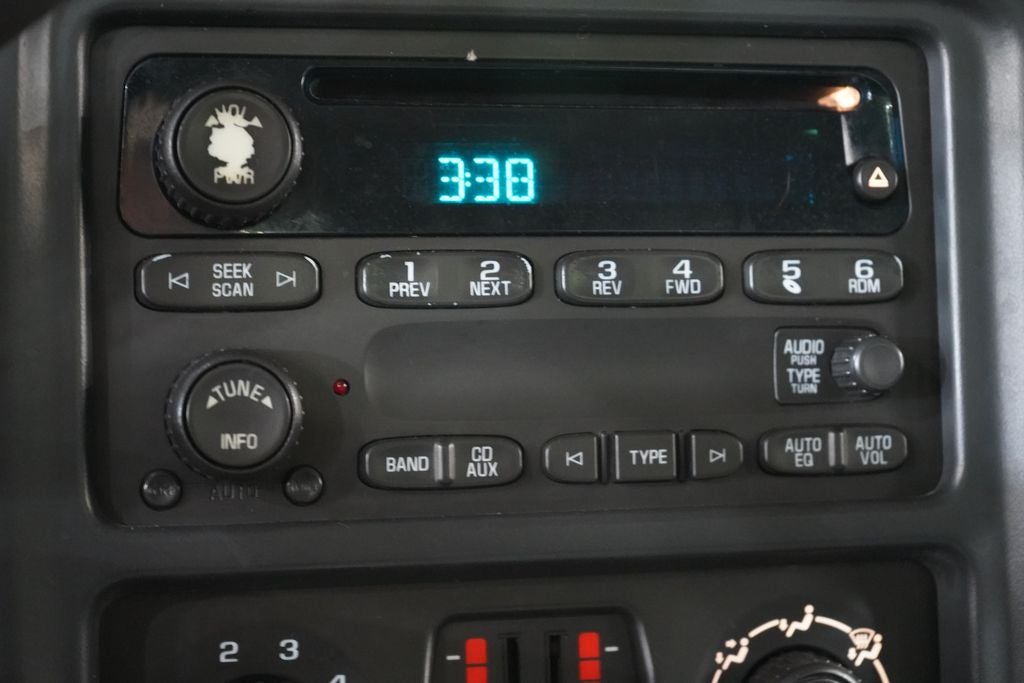

• Audio system, AM/FM stereo with CD player, seek-and-scan, digital clock, auto-tone control, Radio Data System (RDS) and speed-compensated volume (Upgradeable to (UC6) AM/FM stereo with 6-disc in-dash CD changer.)
• Audio system feature, speaker system (Includes 4 speakers on Regular Cab and 6 speakers on Extended and Crew Cab models.)
• Cup holders, front (Also includes rear cupholders on Extended and Crew Cab models.)
• Cigarette lighter, on instrument panel
• Power outlets, 2 auxiliary instrument panel-mounted with covers, 12-volt
• Mirror, inside rearview auto-dimming with 8-point compass and outside temperature display
• Visors, driver and front passenger, padded with cloth trim, extenders, pocket on driver-side and vanity mirror on passenger-side, Shale-colored
• Console, overhead mini with map lights
• Assist handle, front passenger (Also includes rear outboard passenger assist handles on Extended and Crew Cab models.)
• Coat hook, driver-side rear (Also includes passenger-side coat hook on Extended and Crew Cab models.)
• Lighting, interior with dome and reading lights, backlit instrument panel switches and door handle-activated illuminated entry

• Brakes, 4-wheel antilock, 4-wheel disc
• Air bags, frontal, driver and right-front passenger (Regular and Extended Cab models includes passenger-side deactivation switch. Never place a rear- facing infant restraint in the front seat of any vehicle equipped with an active frontal air bag. Always use safety belts and the correct child restraints for your childs age and size. Children are safer when properly secured in a rear seat. See the vehicles Owners Manual and child safety seat instructions for more safety information.)
• Daytime Running Lamps, with automatic exterior lamp control

HEAVY-DUTY POWER PACKAGE

• includes (LBZ) Duramax 6.6L Turbo Diesel engine
• (MW7) Allison 1000 6-speed automatic transmission and (G80) heavy-duty rear locking differential

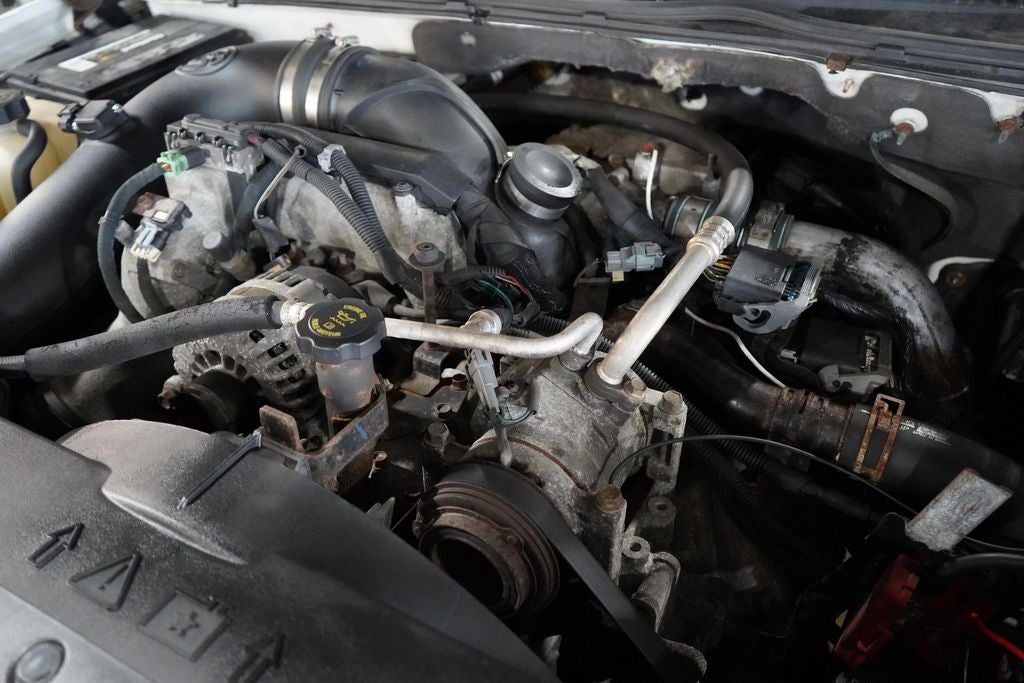

ENGINE, DURAMAX 6.6L TURBO DIESEL V8

• (360 hp [268.0 kW] @ 3200 rpm
• 650 lb-ft of torque [881.0 N-m] @ 1600 rpm) Includes (TQ3) heavy-duty dual
• 770 cold-cranking amp battery
• (KG3) 145-amp alternator
• (K47) high-capacity air cleaner and (K05) engine block heater)

TRANSMISSION, ALLISON 1000 6-SPEED AUTOMATIC, ELECTRONICALLY CONTROLLED WITH OVERDRIVE, ELECTRONIC ENGINE GRADE BRAKING AND TOW/HAUL MODE.

• Includes (KNP) external transmission oil cooler

LT1 PREFERRED EQUIPMENT GROUP

• Includes Standard Equipment

AUDIO SYSTEM, AM/FM STEREO WITH CD PLAYER

• seek-and-scan
• digital clock
• auto-tone control
• Radio Data System (RDS)
• speed-compensated volume (STD)

SEAT TRIM, CUSTOM CLOTH

• (STD)

WHEELS, 4-16" X 6.5" (40.6 CM X 16.5 CM) 8-LUG CHROME-STYLED STEEL

• includes chrome center caps and steel spare (STD)

GVWR, 9200 LBS. (4173 KG)

• (STD)

ENGINE BLOCK HEATER

• (Included with (LBZ) Duramax 6.6L Turbo Diesel V8 engine.)

AIR CLEANER, HIGH-CAPACITY

• (Included with (LBZ) Duramax 6.6L Turbo Diesel V8 engine
• (Z82) heavy-duty trailering equipment or (VYU) Snow Plow Prep Package.)

SKID PLATE PACKAGE

• includes aluminum front underbody shield starting behind front bumper and running to first cross-member
• protecting front underbody
• oil pan
• differential case and transfer case
• frame-mounted shields

TIRES, LT245/75R16E ALL-SEASON, BLACKWALL

• (STD) (Includes 5 tires with (E63) Fleetside pickup box. Includes 4 tires with (ZW9) pickup box delete.)

BATTERY, HEAVY-DUTY DUAL 770 COLD-CRANKING AMPS, MAINTENANCE-FREE

• with rundown protection and retained accessory power

TRAILERING EQUIPMENT, HEAVY-DUTY

• includes trailering hitch platform
• 7-wire harness (harness includes wires for: park lamps
• backup lamps
• right turn
• left turn
• electric brake lead
• battery and ground) with independent fused trailering circuits mated to a 7-way sealed connector
• instrument panel jumper wiring harness for electric trailer brake controller and 1-way sealed connector for center high-mounted stop/brake lamp and (K47) high-capacity air cleaner

PAINT, SOLID

• (STD)

• 145 Amp Alternator
• 3.73 Rear Axle Ratio
• 6-Way Power Driver Seat Adjuster
• 9,200 lbs (4,173 Kgs) GVWR
• Dark Charcoal
• Dual Heavy-Duty 770 CCA Batteries
• Engine Block Heater
• Federal Emissions Requirements

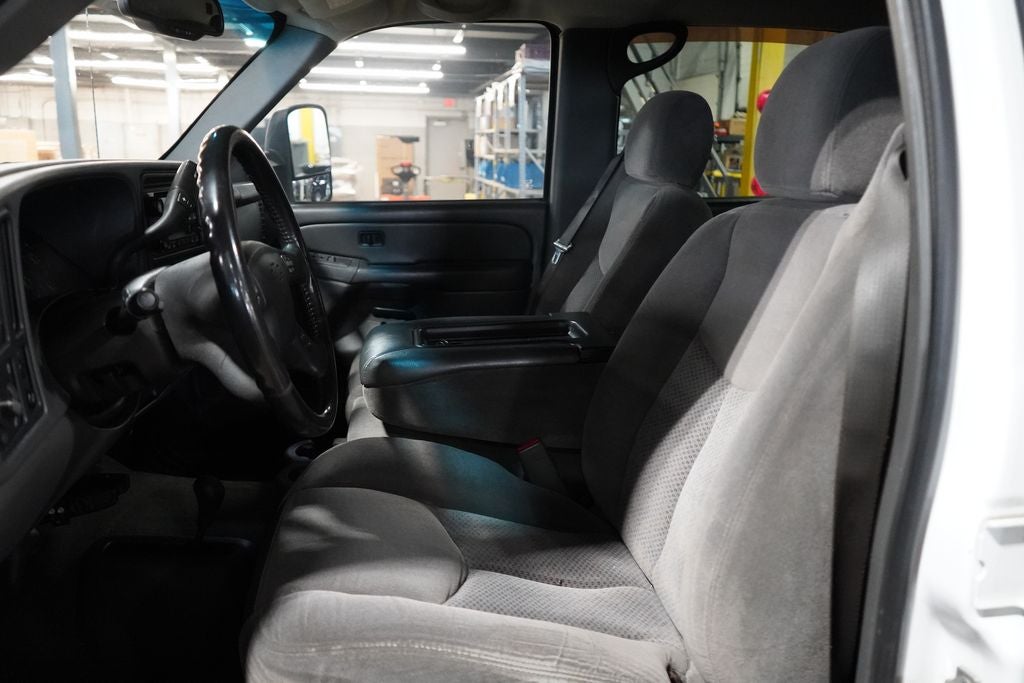

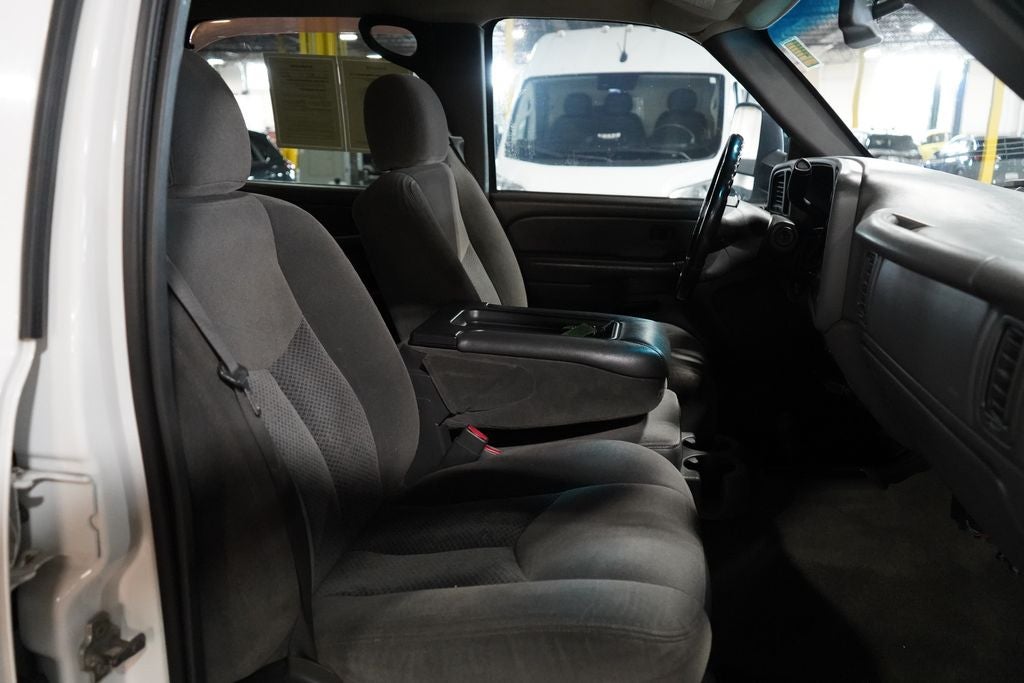

• Front 40/20/40 Split-Bench Seat
• Front Halogen Fog Lamps
• HD Auxiliary External Transmission Oil Cooler
• Heavy-Duty Handling/trailering Suspension Package
• Heavy-Duty Trailering Equipment
• High-Capacity Air Cleaner

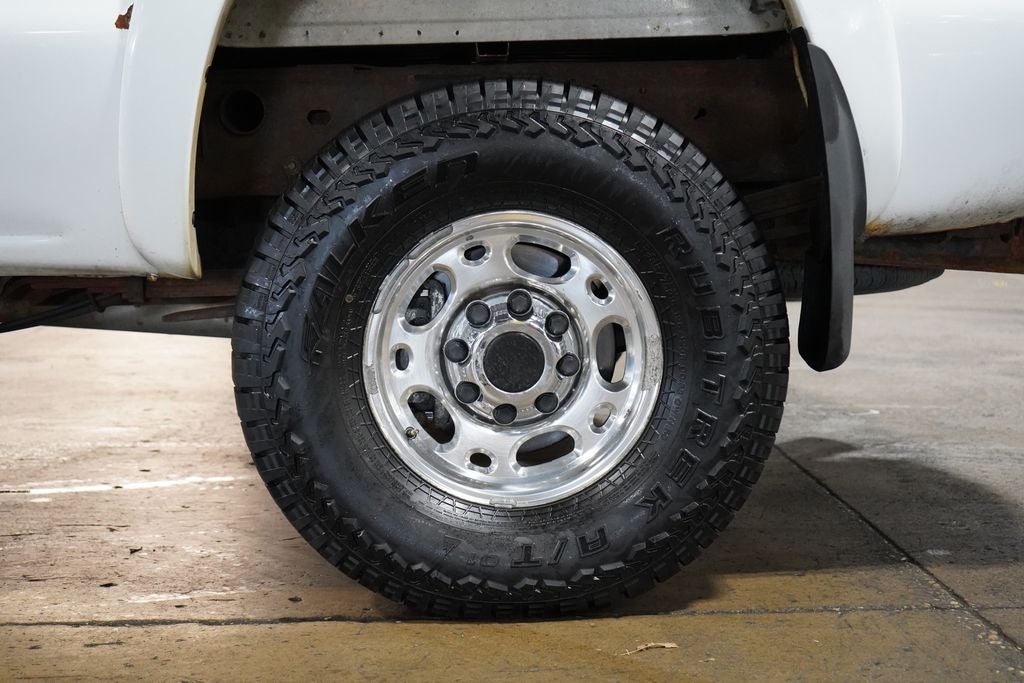

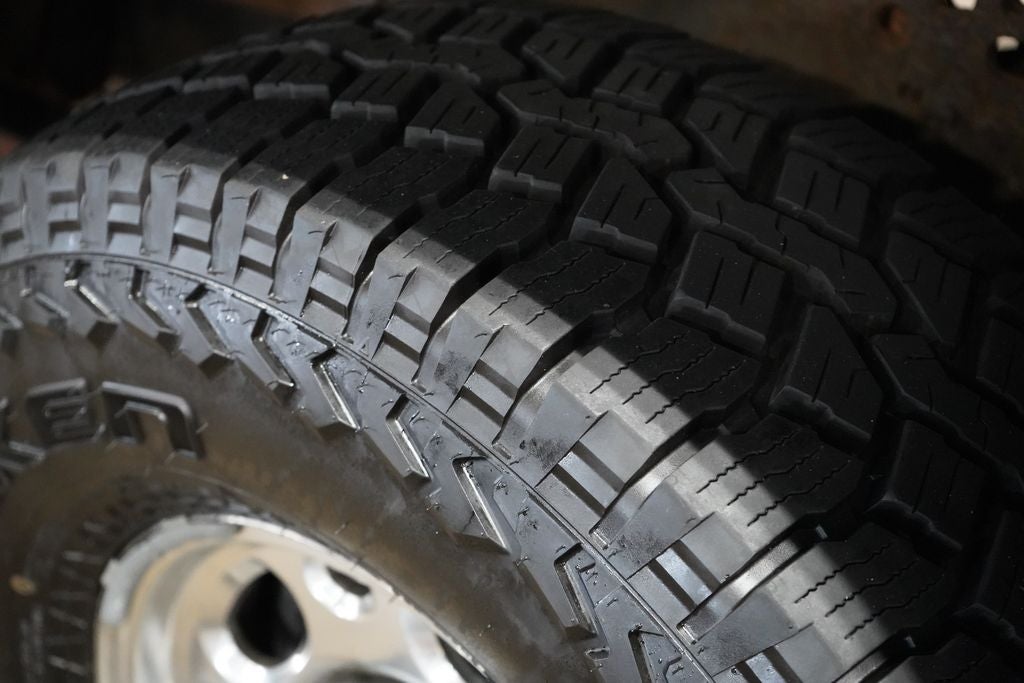

• LT245/75R16E AS BW (5) Tires
• Skid Plate Package
• Spare LT245/75R16E AS BW Tire

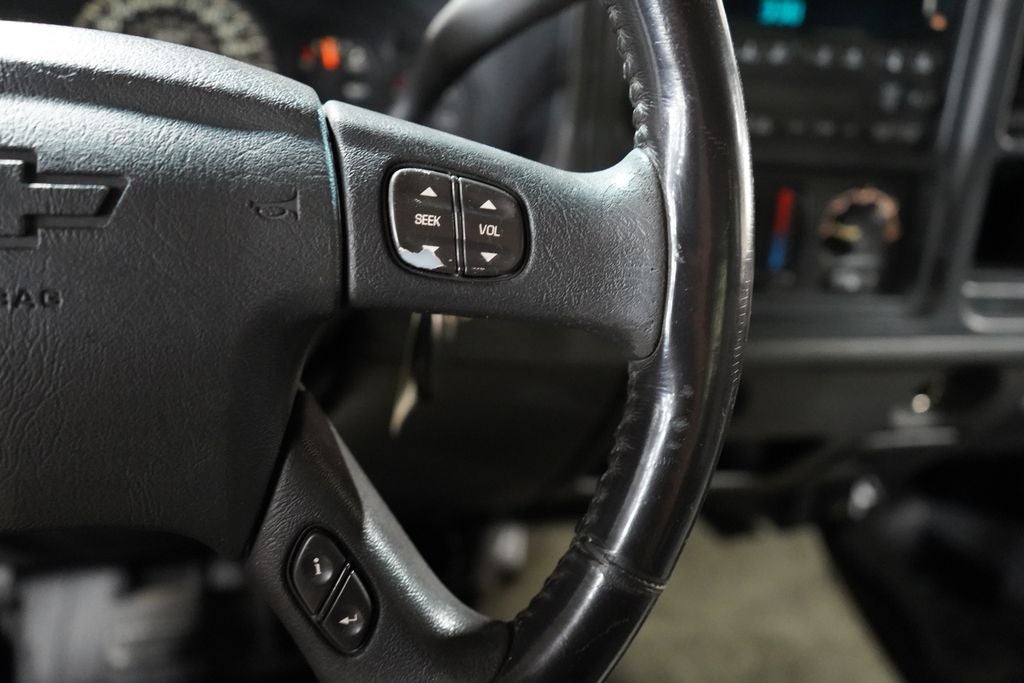

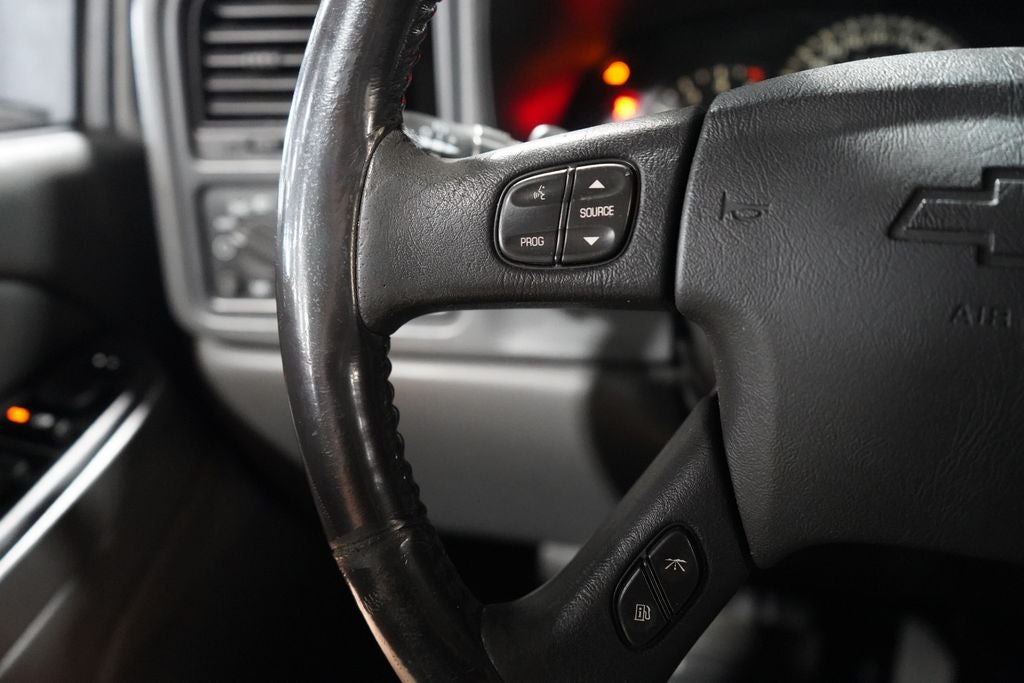

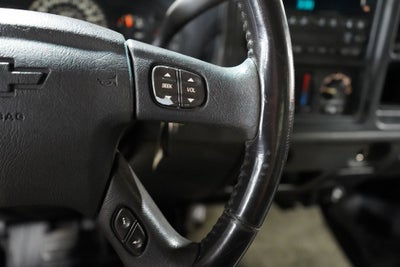

• Steering Wheel Mounted Audio Controls
• Summit White
• Heavy-Duty Power Package
• LT1 Decor
• 12V power outlets 2 12V power outlets
• 16' x 6.5' Chrome-Styled Steel Wheels
• 3-point seatbelt Rear seat center 3-point seatbelt
• 4-Wheel Disc Brakes
• 4WD type Part-time 4WD
• 6 Speakers
• ABS brakes
• ABS Brakes 4-wheel antilock (ABS) brakes
• ABS Brakes Four channel ABS brakes
• Accessory power Retained accessory power
• Air Conditioning
• Air conditioning Yes
• Alternator Type Alternator
• AM/FM radio
• AM/FM Stereo w/CD Player
• Antenna Fixed audio antenna
• Armrests front center Front seat center armrest
• Armrests front storage Front seat armrest storage
• Armrests rear Rear seat center armrest
• Ashtray
• Audio Speaker System Feature
• Audio storage Audio media storage unit
• Auto door locks Auto-locking doors

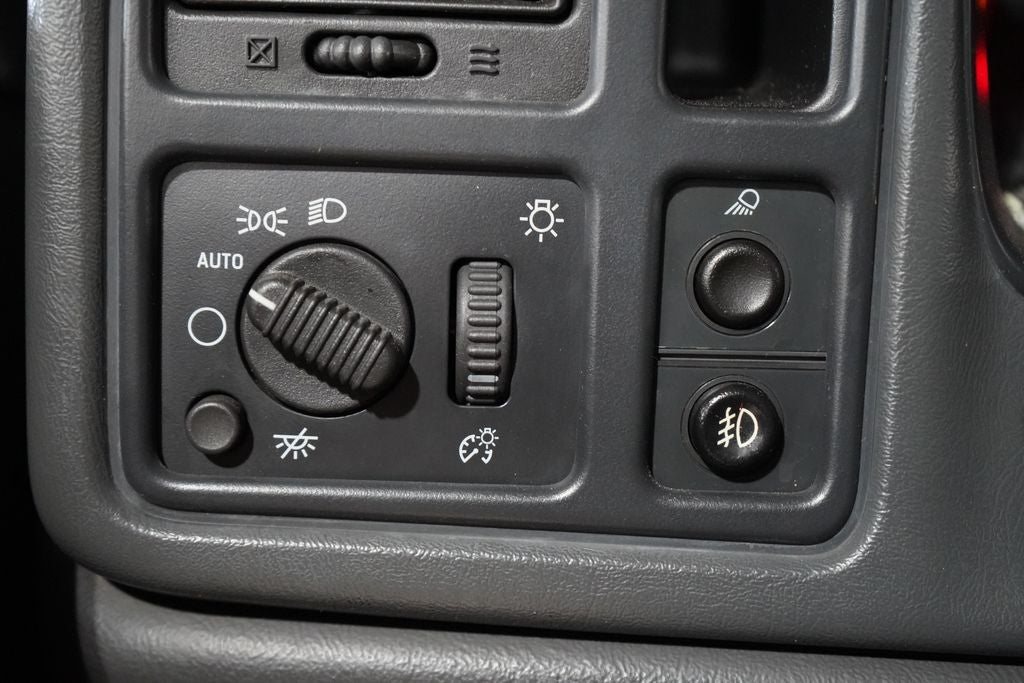

• Auto headlights Auto on/off headlight control
• Auto-Dimming Inside Rear-View Mirror
• Auto-dimming Rear-View mirror
• Auxiliary power take-off
• Basic warranty 36 month/36,000 miles
• Battery charge warning
• Battery run down protection
• Battery type Dual lead acid batteries
• Beverage holders Front beverage holders
• Beverage holders rear Rear beverage holders

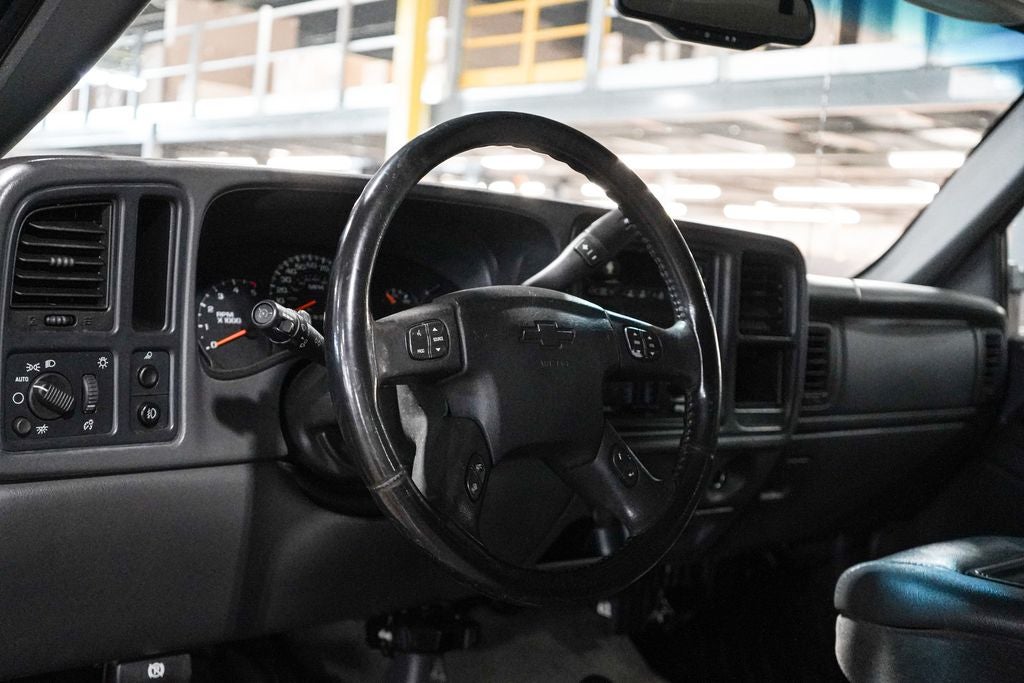

• Black Leather-Wrapped Steering Wheel
• Block heater Engine block heater
• Body panels Fully galvanized steel body panels with side impact beams
• Bodyside insert Chrome bodyside insert
• Bodyside moldings
• Bodyside moldings Colored bodyside moldings
• Box style Standard style pickup box
• Brake type 4-wheel disc brakes
• Bumper rub strip front Gray front bumper rub strip
• Bumper rub strip rear Black rear bumper rub strip
• Bumpers front Chrome front bumper
• Bumpers rear Chrome rear bumper
• Bumpers: chrome
• Cab mounted cargo light
• Cabback insulator
• CD location CD player located in the dashboard/instrument panel
• CD player
• CD Single-disc CD player
• Child door locks Manual rear child safety door locks
• Cigarette lighter Front cigarette lighter
• Climate control Manual climate control
• Clock Digital clock
• Color-Keyed Bodyside Moldings
• Color-Keyed Carpeting & Floor Mats
• Compass
• Compressor Intercooled turbo
• Corrosion perforation warranty 72 month/100,000 miles
• Cruise control
• Custom Cloth Seat Trim
• Cylinder head material Aluminum cylinder head
• Day/Night rearview mirror
• Door ajar warning
• Door bins front Driver and passenger door bins
• Door handle material Black door handles
• Door locks Power door locks with 2 stage unlocking
• Door mirror style Black door mirrors
• Door mirror type Standard style side mirrors
• Door mirrors Power door mirrors
• Door trim insert Vinyl door trim insert
• Drive type Four-wheel drive
• Driver door bin
• Driver information center
• Driver seat direction Driver seat with 8-way directional controls
• Dual front impact airbags
• Dual-zone front climate control
• Electric Rear-Window Defogger
• Electronic Cruise Control w/Set & Resume Speed
• Emissions Federal emissions
• Engine block material Iron engine block
• Engine Configuration Duramax V8
• Engine cooler Engine oil cooler
• Engine Duramax 6.6L V-8 diesel direct injection, intercooled turbo, diesel, engine with 360HP
• Engine hour meter
• Engine Location Front mounted engine
• Engine Mounting direction Longitudinal mounted engine
• Engine Short Duramax 6.6L V-8
• Engine temperature warning
• Engine/electric motor temperature gauge
• Equalizer Automatic audio equalizer
• Fenders Colored fender flares
• First-row windows Power first-row windows
• Floor coverage Full floor coverage
• Floor covering Full carpet floor covering
• Floor mats Rubber front and rear floor mats
• Fog lights Front fog lights
• Folding door mirrors Manual folding door mirrors
• Folding rear seats 60-40 folding rear seats
• Front anti-roll bar
• Front anti-roll Front anti-roll bar
• Front Center Armrest w/Storage
• Front dual zone A/C
• Front head restraint control Manual front seat head restraint control
• Front head restraints Height adjustable front seat head restraints
• Front impact airbag driver Driver front impact airbag
• Front impact airbag passenger Passenger front impact airbag
• Front reading lights
• Front seat type Split-bench front seat
• Front seat upholstery Premium cloth front seat upholstery
• Front seatback upholstery Cloth front seatback upholstery
• Front wheel independent suspension
• Fuel Type Diesel
• Fully automatic headlights
• Gearshifter material Urethane gear shifter material
• Glove box Standard glove box
• Grille style Black grille with chrome surround
• Headlight type Reflector headlights
• Headlights Halogen headlights
• Headlights on reminder
• Headliner coverage Full headliner coverage
• Headliner material Cloth headliner material
• Heated door mirrors
• Heated door mirrors Heated driver and passenger side door mirrors
• Heavy-Duty Auxiliary External Transmission Oil Cooler
• Heavy-Duty Rear Locking Differential
• High mount stop light High mounted center stop light
• Ignition Compression ignition system
• Ignition type Mechanical
• Illuminated entry
• Immobilizer PASSLock II immobilizer
• Instrumentation display Analog instrumentation display
• Interior courtesy lights Delay interior courtesy lights
• Key in vehicle warning
• Keyfob keyless entry
• Leather steering wheel
• Limited slip differential Mechanical limited slip differential
• Lock-up transmission
• Locking hub control Auto locking hub control
• Low level warnings Low level warning for oil, coolant, fuel and washer fluid
• Manual passenger seat controls Passenger seat manual reclining and fore/aft control
• Multiple headlights Multiple enclosed headlights
• Number of airbags 2 airbags
• Number of door entry light(s) 4 door entry light(s)
• Number of doors 4 doors
• Oil pressure gauge
• Oil pressure warning
• One-touch down window Driver and passenger one-touch down windows
• Outside temperature display
• Overdrive transmission
• Overhead console
• Overhead console Mini overhead console
• Overhead console storage
• Overhead Mini Console w/Map Lights
• Paint Non-metallic paint
• Panic alarm
• Passenger door bin
• Passenger doors rear left Conventional left rear passenger door
• Passenger doors rear right Conventional right rear passenger door
• Passenger seat direction Front passenger seat with 4-way directional controls
• Passenger vanity mirror
• Power Door Locks
• Power door mirrors
• Power driver seat controls Driver seat power cushion tilt, fore/aft control and height adjustable control
• Power steering
• Power windows
• Power Windows w/Driver & Front Passenger Express-Down
• Power-Adjustable Heated Black Outside Mirrors
• Powertrain type ICE
• Powertrain warranty 60 month/100,000 miles
• Radiator
• Radio AM/FM/satellite prep
• Radio data system
• RDS Radio data system (RDS)
• Rear bumper step
• Rear cargo door Tailgate
• Rear Chrome Step-Style Bumper w/Pad
• Rear head restraint control 2 rear seat head restraints
• Rear head restraint control Manual rear seat head restraint control
• Rear head restraints Height adjustable rear seat head restraints
• Rear seat center armrest
• Rear seat direction Front facing rear seat
• Rear seat folding position Flip forward cushion and rear seatback
• Rear seat upholstery Premium cloth rear seat upholstery
• Rear seatback upholstery Carpet rear seatback upholstery
• Rear seats fixed or removable Fixed rear seats
• Rear seats Split-bench rear seat
• Rear Springs Regular grade rear springs
• Rear step bumper
• Rear under seat ducts Rear under seat climate control ducts
• Rear window defroster
• Rear windshield Fixed rear windshield
• Rearview mirror Auto-dimming rear view mirror
• Remote keyless entry
• Remote Keyless Entry w/2 Transmitters
• Remote panic alarm
• Roadside warranty 60 month/100,000 miles
• Running lights Daytime running lights
• Seatback storage pockets 2 seatback storage pockets
• Seating capacity 6
• Second-row windows Power second-row windows
• Security system
• Seek scan
• Selectable mode transmission
• Sequential shift control
• Service interval warning Service interval indicator
• Shock absorbers Gas-pressurized shock absorbers
• Skid plate 2 underbody skid plates
• Solar-Ray Deep-Tinted Glass
• Spare tire Full-size spare tire with steel wheel
• Spare tire location Crank-down spare tire
• Speakers number 6 speakers
• Speakers Performance grade speakers
• Special paint Monotone paint
• Speed control
• Speed sensitive volume
• Split folding rear seat
• Split front seats 40-20-40 split-bench front seat
• Springs front Front torsion springs
• Springs rear Rear leaf springs
• Steering Hydraulic power-assist steering system
• Steering mounted audio control Steering wheel mounted audio controls
• Steering type Re-circulating ball steering
• Steering wheel material Leather steering wheel
• Steering wheel tilt Manual tilting steering wheel
• Suspension Heavy-duty ride suspension
• Suspension ride type front Independent front suspension
• Suspension ride type rear Rigid axle rear suspension
• Suspension type front Short and long arm front suspension
• Suspension type rear Leaf spring rear suspension
• Tachometer
• Tailpipe Stainless steel single exhaust
• Temperature display Exterior temperature display
• Tilt steering wheel
• Tinted windows Deep tinted windows
• Tires LT245/75SR16 AS BSW front and rear tires
• Tow hooks front 2 front tow hooks
• Towing class Class IV tow rating
• Towing hitch Trailer hitch
• Towing wiring harness Trailer wiring harness
• Transfer case Manual transfer case shift
• Transmission Allison 6-speed automatic
• Transmission electronic control
• Transmission fluid temperature warning Transmission fluid temp warning
• Transmission oil cooler
• Transmission temperature gauge Transmission fluid temperature gauge
• Transmission Type Automatic
• Trip computer
• Trip odometer
• Turn signal warning Turn signal on warning
• Variable panel light Variable instrument panel light
• Variably intermittent wipers
• Ventilated brakes Front and rear ventilated disc brakes
• Visor driver expandable coverage Driver visor with expandable coverage
• Visor passenger expandable coverage Passenger visor with expandable coverage
• Visor passenger mirror Passenger visor mirror
• Voltmeter
• Wheel covers Chrome-clad wheel covers
• Wheels 16 x 6.5-inch front and rear styled steel wheels
• Window Trim Black side window trim
• Windshield trim Black windshield trim
• Wipers Variable intermittent front windshield wipers

• Electrical
• Cold Cranking Amps @ 0° F (Primary): 770
• Cold Cranking Amps @ 0° F (Primary): 600
• Cold Cranking Amps @ 0° F (2nd): 770
• Maximum Alternator Capacity (amps): 145
• Maximum Alternator Capacity (amps): 105
• Cooling System
• Total Cooling System Capacity (qts): - TBD -
• Total Cooling System Capacity (qts): 16.4
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 4670
• Gross Axle Wt Rating - Rear (lbs): 6084
• Curb Weight - Front (lbs): 3331
• Curb Weight - Rear (lbs): 2424
• Gross Vehicle Weight Rating Cap (lbs): 9200
• Gross Combined Wt Rating (lbs): 22000
• Gross Combined Wt Rating (lbs): 16000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 12000
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 9800
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1500
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1470
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 14200
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 9800
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 3550
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 2450
• Suspension
• Suspension Type - Front: Torsion Bar
• Suspension Type - Rear: 2-Stage Multi-Leaf
• Spring Capacity - Front (lbs): 4800
• Spring Capacity - Rear (lbs): 6084
• Axle Type - Front: Independent
• Axle Type - Rear: Full-Floating
• Axle Capacity - Front (lbs): 4800
• Axle Capacity - Rear (lbs): 6900
• Axle Ratio (:1) - Front: 3.73
• Axle Ratio (:1) - Front: 4.10
• Axle Ratio (:1) - Rear: 3.73
• Axle Ratio (:1) - Rear: 4.10
• Shock Absorber Diameter - Front (mm): 36
• Shock Absorber Diameter - Rear (mm): 36
• Stabilizer Bar Diameter - Front (in): 1.25
• Brakes
• Brake Type: Pwr
• Brake ABS System: Four-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 12.8 x 1.5
• Rear Brake Rotor Diam x Thickness (in): 13.0 x 1.1
• Tires
• Front Tire Order Code: QIZ
• Rear Tire Order Code: QIZ
• Spare Tire Order Code: ZHH
• Spare Tire Order Code: QIZ
• Front Tire Size: LT245/75R16
• Rear Tire Size: LT245/75R16
• Spare Tire Size: LT245/75R16
• Front Tire Capacity (lbs): 2335
• Rear Tire Capacity (lbs): 3042
• Spare Tire Capacity (lbs): 2335
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Wheels
• Front Wheel Size (in): 16 x 6.5
• Rear Wheel Size (in): 16 x 6.5
• Spare Wheel Size (in): 16 x 6.5
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr
• Steering Ratio (:1), On Center: - TBD -
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 49.6
• Turning Diameter - Wall to Wall (ft): - TBD -
• Frame
• Frame Type: Ladder
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 26
• Fuel Tank Location: LH
• Exterior Dimensions
• Wheelbase (in): 153.0
• Length, Overall w/o rear bumper (in): 239.7
• Width, Max w/o mirrors (in): 79.7
• Height, Overall (in): 77.0
• Overhang, Front (in): 37.0
• Overhang, Rear w/o bumper (in): 52.2
• Front Bumper to Back of Cab (in): 148.1
• Cab to Axle (in): 41.9
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): - TBD -
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): 10.6
• Ground Clearance, Rear (in): 13.6
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 78.7
• Cargo Box Width @ Top, Rear (in): 61.9
• Cargo Box Width @ Floor (in): 64.8
• Cargo Box Width @ Wheelhousings (in): 50.0
• Cargo Box (Area) Height (in): 19.5
• Tailgate Width (in): 61.9
• Cargo Volume (ft³): 56.9
• Ext'd Cab Cargo Volume (ft³): - TBD -
• Interior Dimensions
• Passenger Capacity: 6
• Front Head Room (in): 41.0
• Front Leg Room (in): 41.3
• Front Shoulder Room (in): 65.2
• Front Hip Room (in): 61.4
• Second Head Room (in): 39.0
• Second Leg Room (in): 39.1
• Second Shoulder Room (in): 65.1
• Second Hip Room (in): 62.9
• Summary
• Vehicle Name: Chevrolet Silverado 2500HD Classic
• Body Style: Crew Cab 6.5' Fleetside
• Body Code: E63
